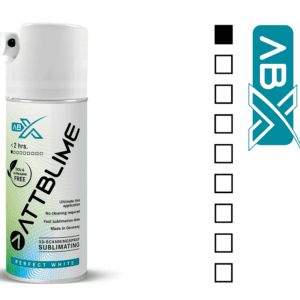

ATTBLIME ABX Scanningspray



ATTBLIME® ABX High Performance Scanning Spray for optical 3D metrology with the optimized short lifetime and the matting in perfect white visible directly during application.


  • Perfect white coating
  • SHC-system (Spray-head-change-system) for best-in-class efficiency
  • Solvent-reduced and free of adamantane
  • High performance 3D Scanningspray
  • Scan time up to 1 hour
  • Residue-free sublimation after 1 hr to 2 hrs
  • No cleaning of scanning object required
  • Made in Germany
  • Pay attention to the product and safety data sheets.

25,00  *

SKU: Categories: ,

ATTBLIME® ABX is a scanning spray created to optimize 3D – scanning tasks in a perfect white coating. To achieve this an even and homogeneous spray layer is applied onto the surface.

The effective scanning time is up to 2 hour after the application of ABX. The sublimation time, the time in which the spray dissolves, is around 2 hours. These times depend on the environmental conditions such as the component surface, room temperature, air circulation or even air humidity.

The scanning spray is free of ethanol and adamantane. ABX adheres to all porous and non-porous surfaces such as textiles, wood, glass, painted surfaces, metal, plastic, stone, concrete and paper.

The spray cans are equipped with the unique SHC-system (spray-head-change-system), which allows the user to choose between vertical and horizontal, as well as wide and narrow exit angles, to optimize the spray layer and thus sublimation times. By having this unique SHC-system the spray layer is highly efficient by using the minimal amount of spray needed.

ATTBLIME ABX is ideal for temporary matting of surfaces for optical 3D metrology without subsequent cleaning. Reference point marks can simply be stuck onto the treated surface.

Additional information

quantity of cans

1, 6, 12, 48, 96


400 ml

safety data sheet
