Description

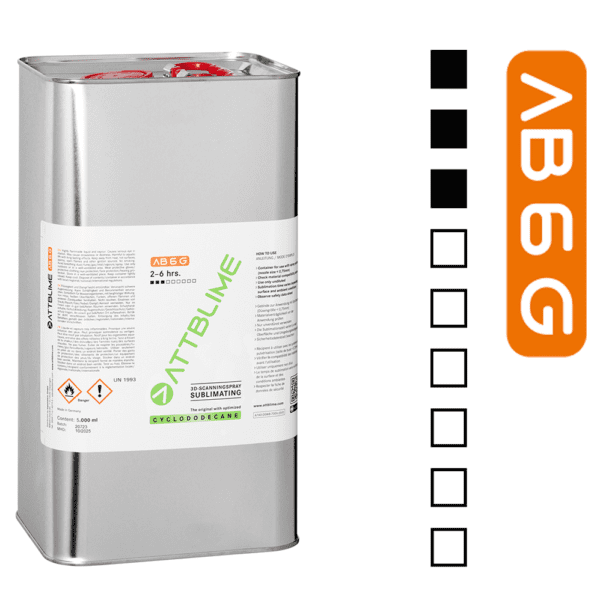

Under the name ATTBLIME® AB6-G a scanning spray was created, which enables the user to achieve an even and homogeneous spray pattern. The newly developed self-volatilizing (sublimating) 3D scanning spray AB6-G is based on the proven raw material cyclododecane, which we have optimized even further.
The effective scan time (scan time) is 2 to 6 hours. The sublimation time (sublimation time), i.e. the time in which the spray dissolves, is around 6 to 10 hours. These times depend on the environmental conditions such as the component surface, room temperature, air circulation or even air humidity.
The scanning spray is free of ethanol and adamantane. AB6-G adheres to all porous and non-porous surfaces such as textiles, wood, glass, painted surfaces, metal, plastic, stone, concrete and paper.
The semi-permanent scanning spray is also available as a container for use with all spray systems such as airbrushes, spray guns or with our mobile ATTBLIME spray system with 230V connection. A maximum nozzle size of 0.75mm is recommended. The efficiency is about 50ml per square meter.
ATTBLIME AB6-G is ideal for temporary matting of surfaces for optical 3D metrology without subsequent cleaning. Reference point marks can simply be stuck onto the treated surface.
With the scanning spray in reusable containers, there are no empty cans.
