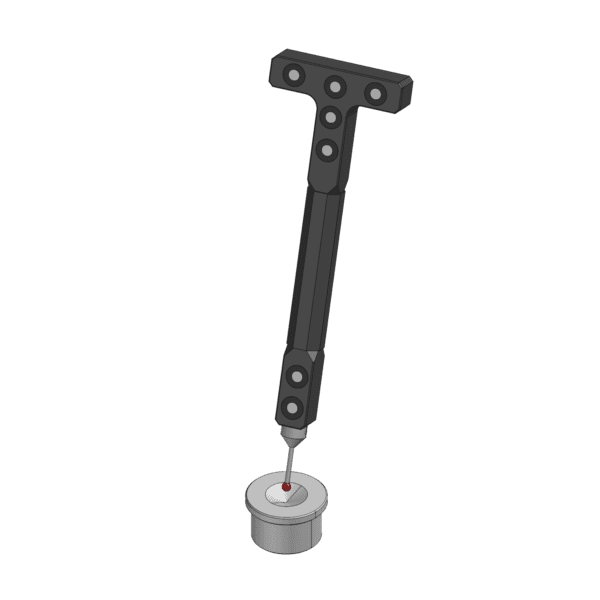

With this optical tracking probe, you can measure 3D-geometries and coordinates in space by using a calibrated target pattern. Hidden elements and areas optically difficult to reach could be measured and inspected. By using the front and the back of the tracking probe you can use 2 individual target sizes. The grip area is covered by rubber and enables and easy and stable handling. The calibration device could be mounted by screw (M6) or fixed by a magnetic adapter.
- Probe tip made from tungsten carbide
- Probe tip sphere made from ruby
- Anodized body in black
- Rubber covered grip area
- Calibration device screwable and magnetic
- Double-sided usability (Front and back)
- Ideal for point size 5.0 mm and 6.0 mm
- High quality transport case with individual foam cut
- Made in Germany
Additional information
material handpiece | black anodized aluminum |
---|---|
material probe tip | tungsten carbide, ruby |
diameter probe tip | 4.0 mm |
suitable targets | 5.0 mm, 6.0 mm |
length incl. probe tip | 190 mm |
Packaging | High quality transport case with individual foam cut |
